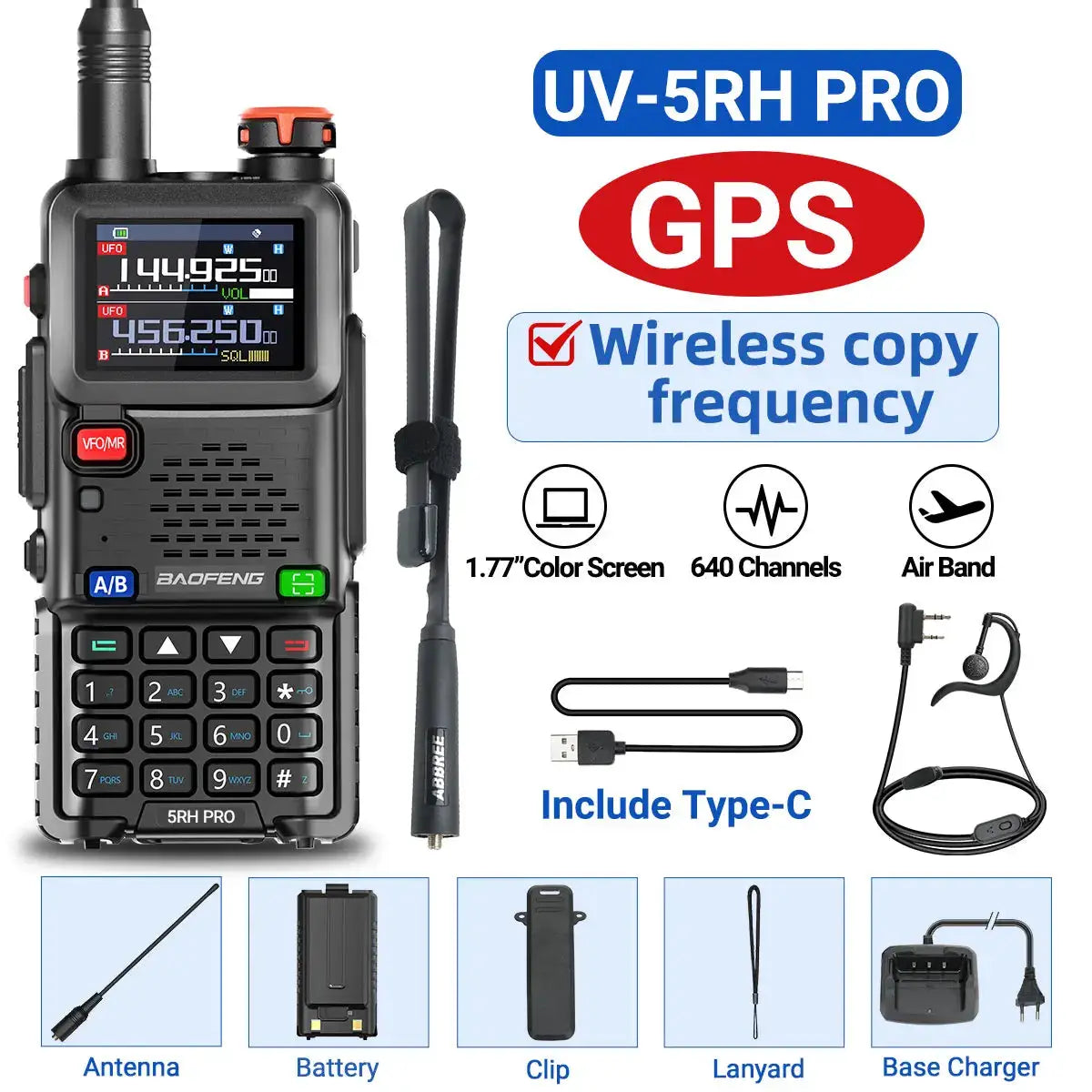

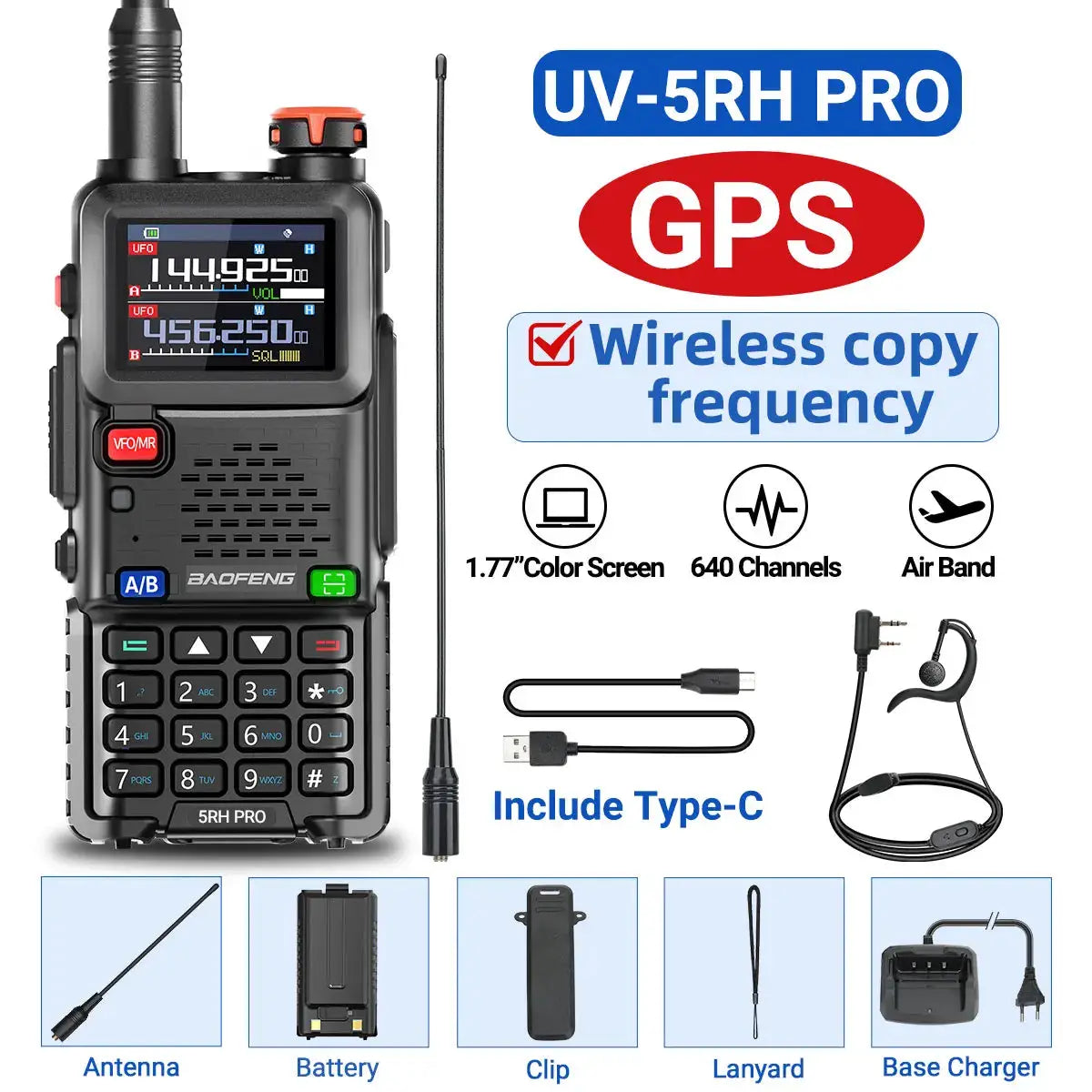

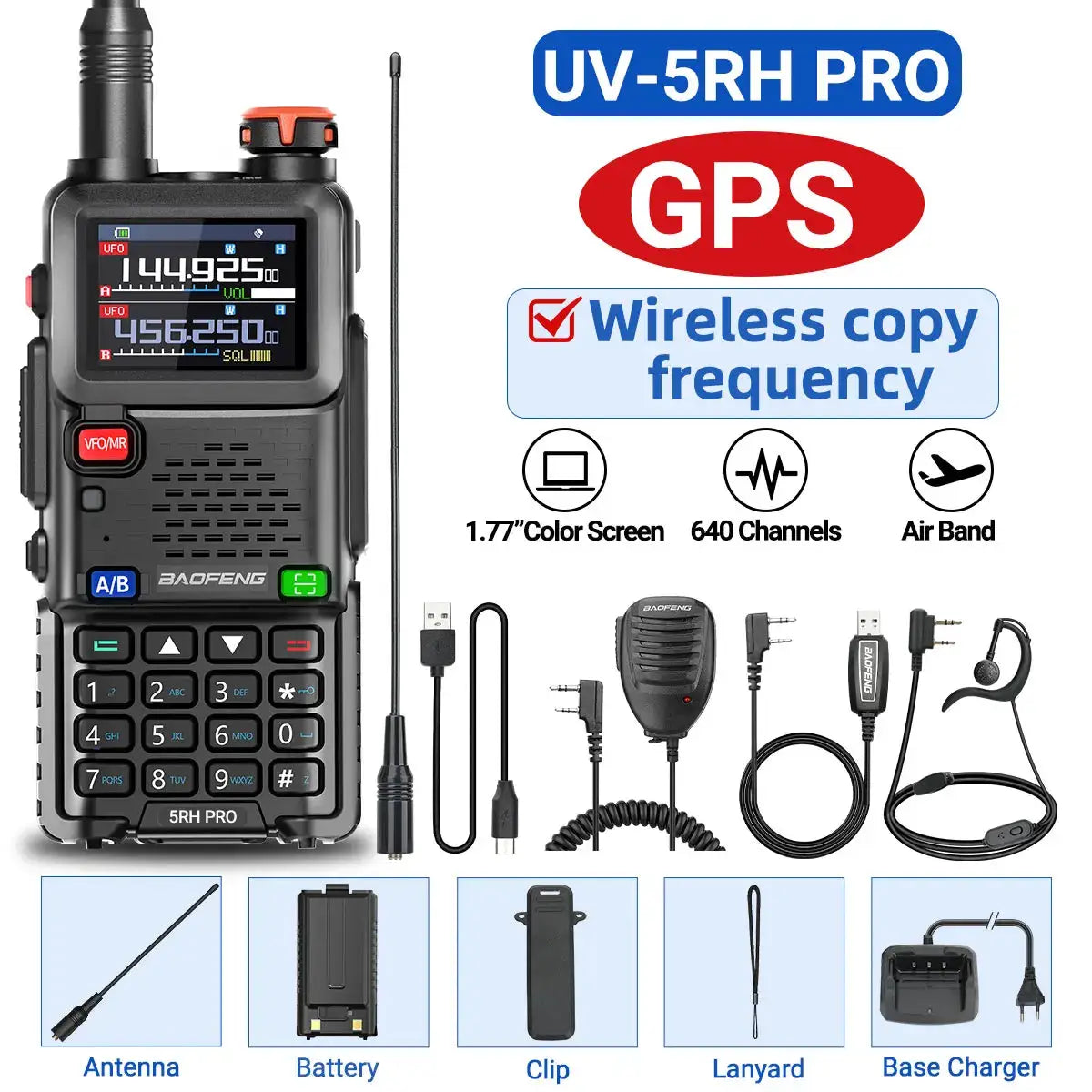

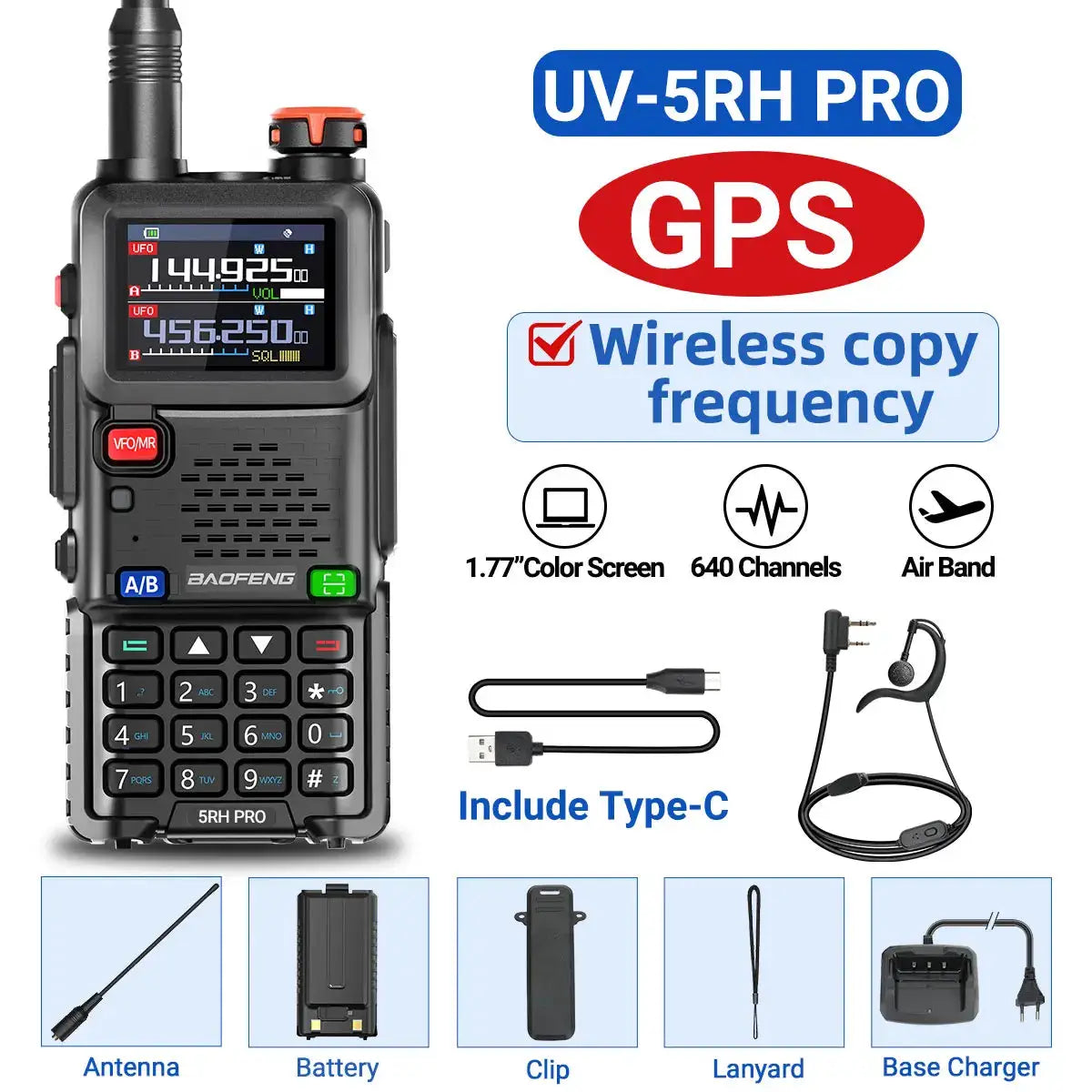

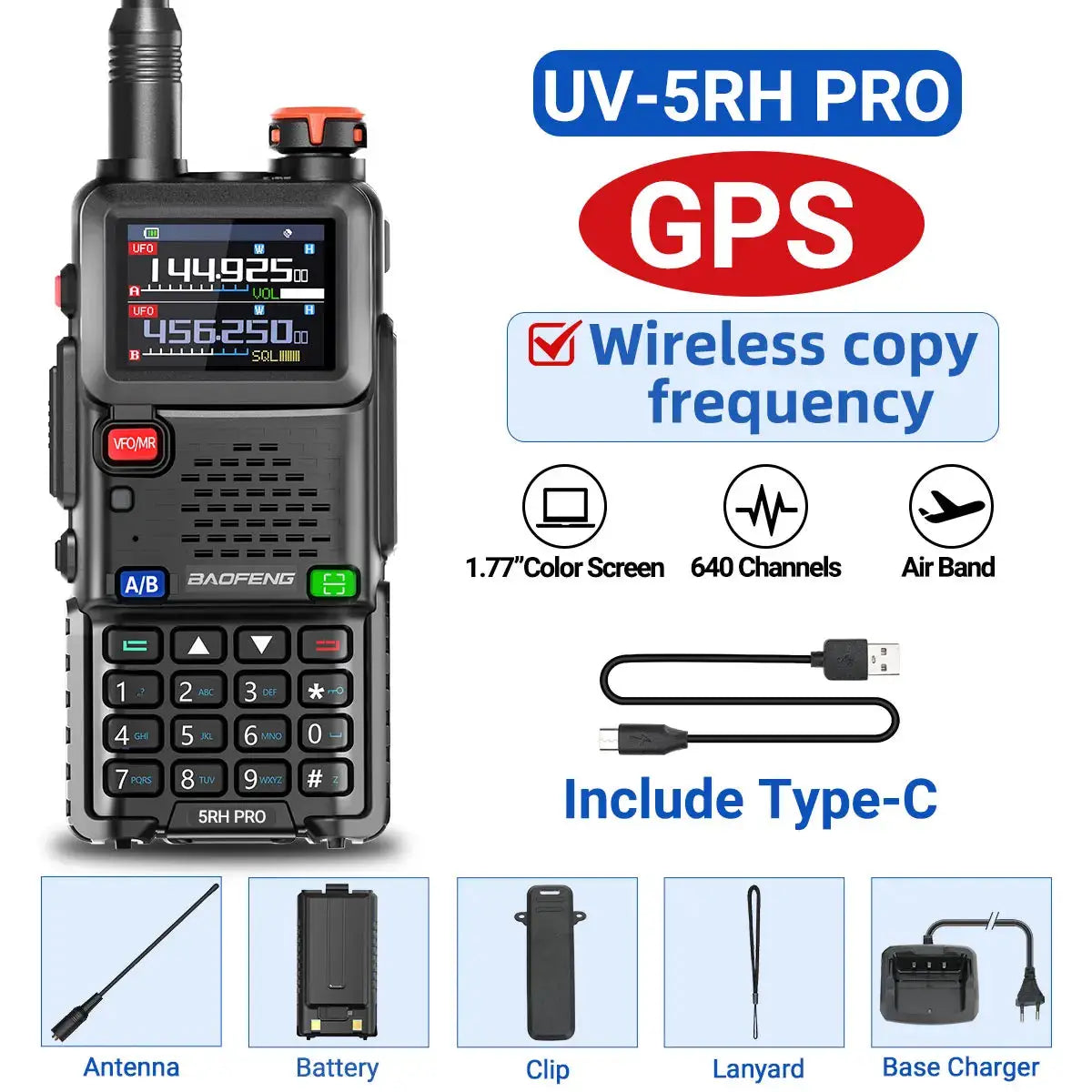

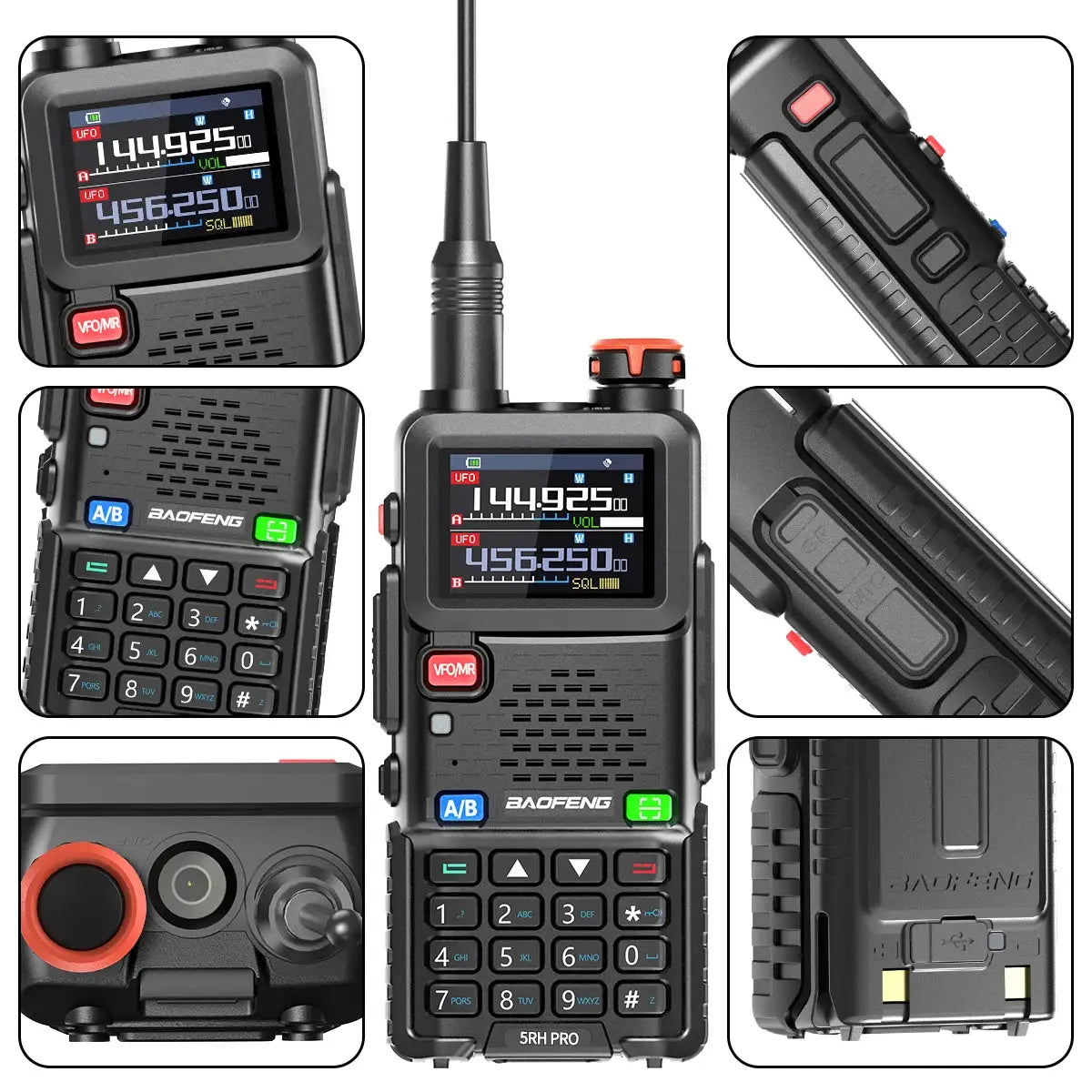

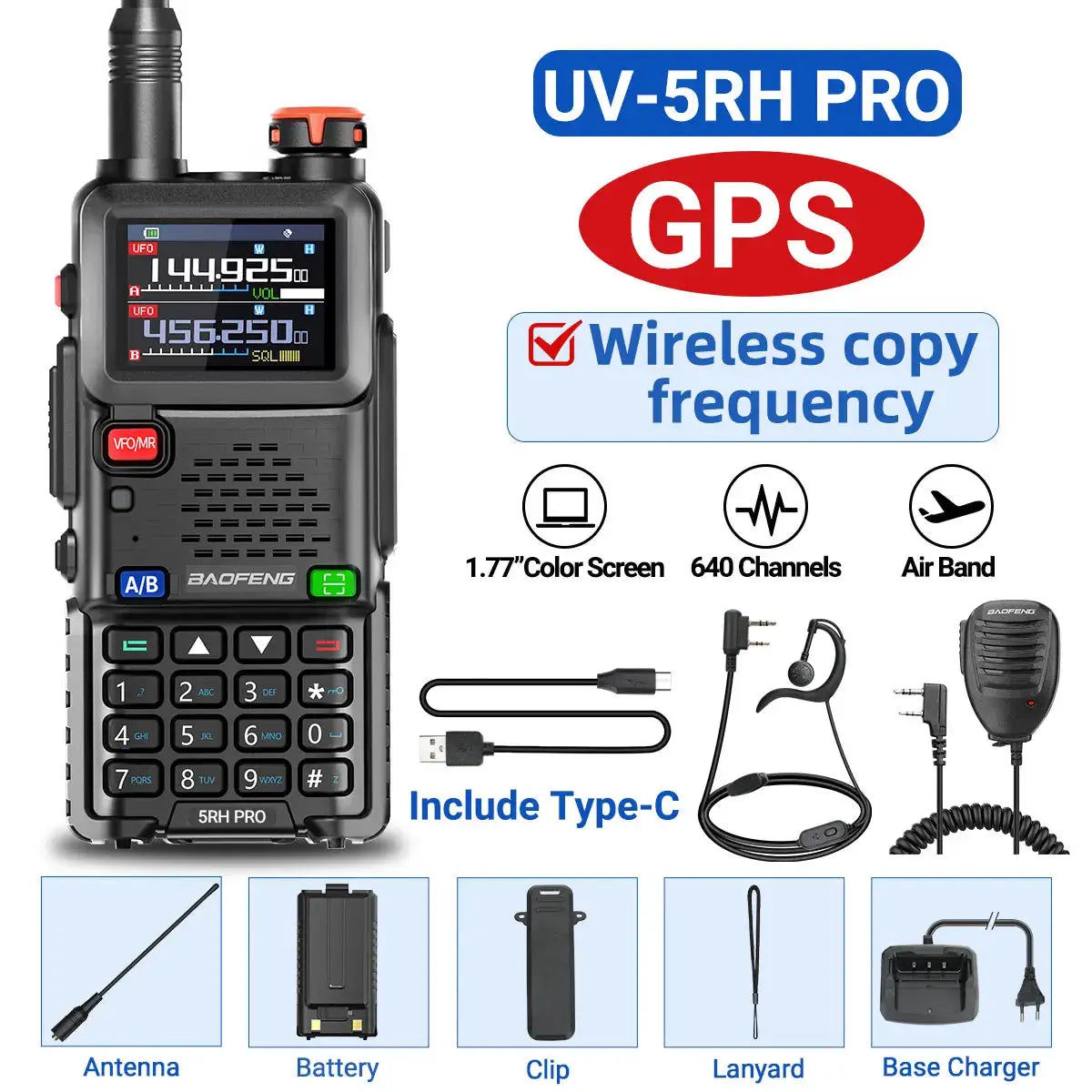

Baofeng UV5RH Pro X GPS Walkie Talkie Multi Band NOAA Type C

Baofeng UV5RH Pro X GPS Walkie Talkie Multi Band NOAA Type C

Regular price $73.99 USD
Regular price $0.00 USD Sale price $73.99 USD
Sale Sold out
Shipping calculated at checkout.
Color
Plug standard

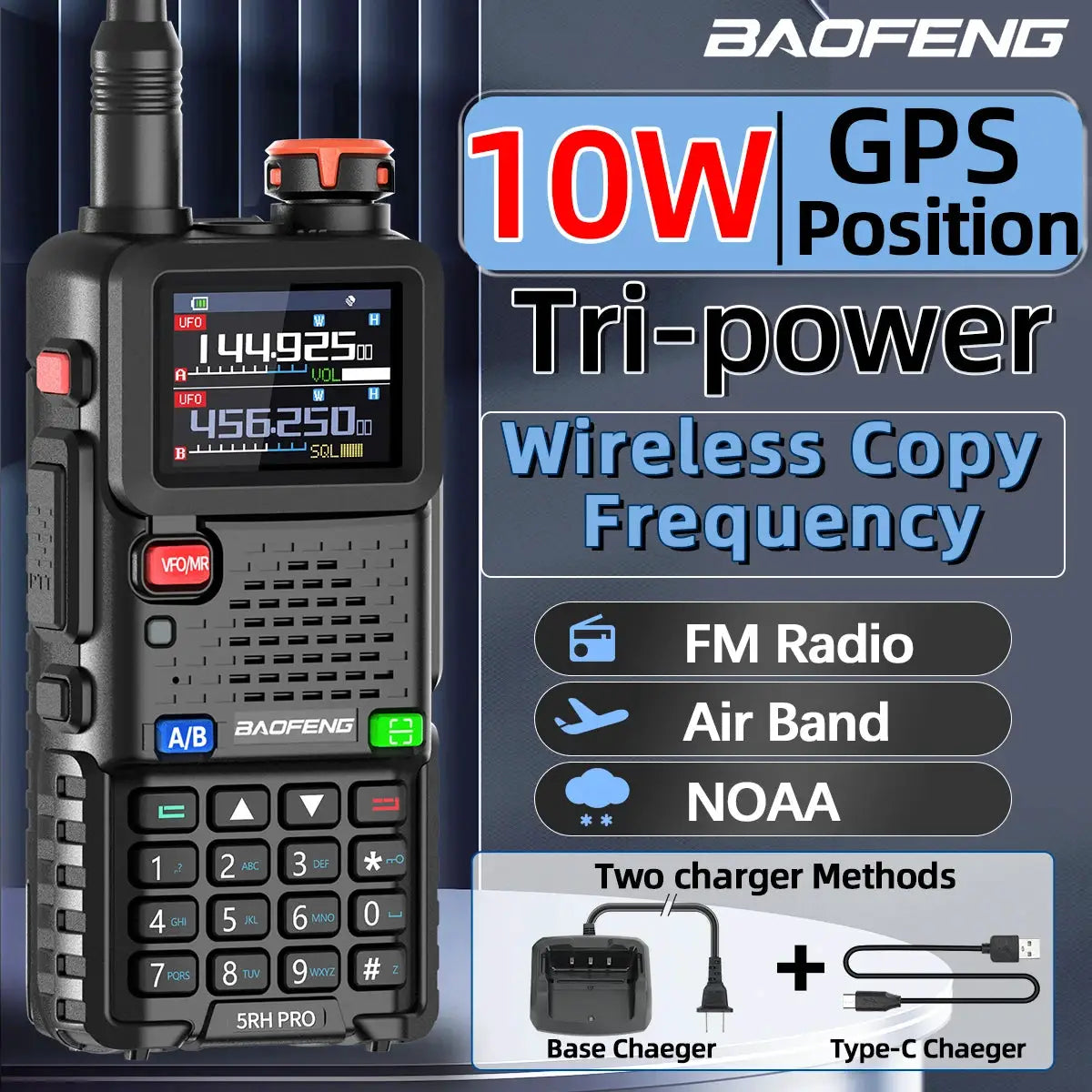

The Baofeng UV-5RH Pro GPS is a compact, multi-band handheld radio delivering 5W–10W output power, built-in GPS, and Type-C charging in a rugged, IP45-rated package. This unit is designed for outdoor adventures, fieldwork, or team operations where reliable, location-aware comms matter.

  • Multi-band frequency coverage: FM 65–108 MHz (RX); AM 108–136 MHz (RX); 136–174 MHz (TX/RX); 220–260 MHz (TX/RX); 350–390 MHz (RX); 400–480 MHz (TX/RX); 480–520 MHz (RX).

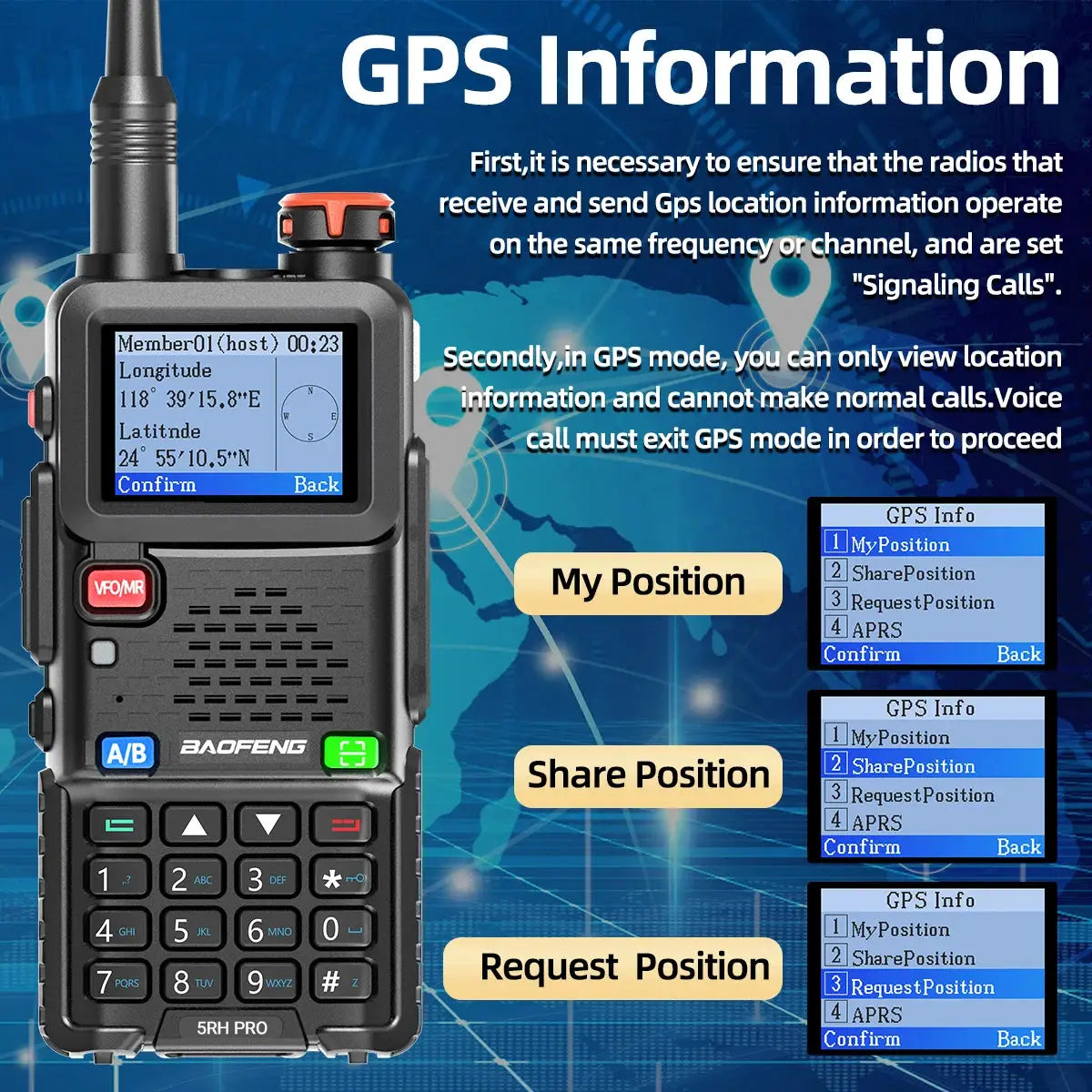

  • GPS and location features: built-in GPS with view, sharing, and location requests to help teammates locate you quickly in the field.
  • Memory and display: 640 storage channels with a 1.77" color LCD, plus dual display capability for easy monitoring and quick access to essential data.
  • Programming and cloning: PC software programmable and keypad/menu programming for quick setup, memory management, VOX, squelch, power levels, and more.

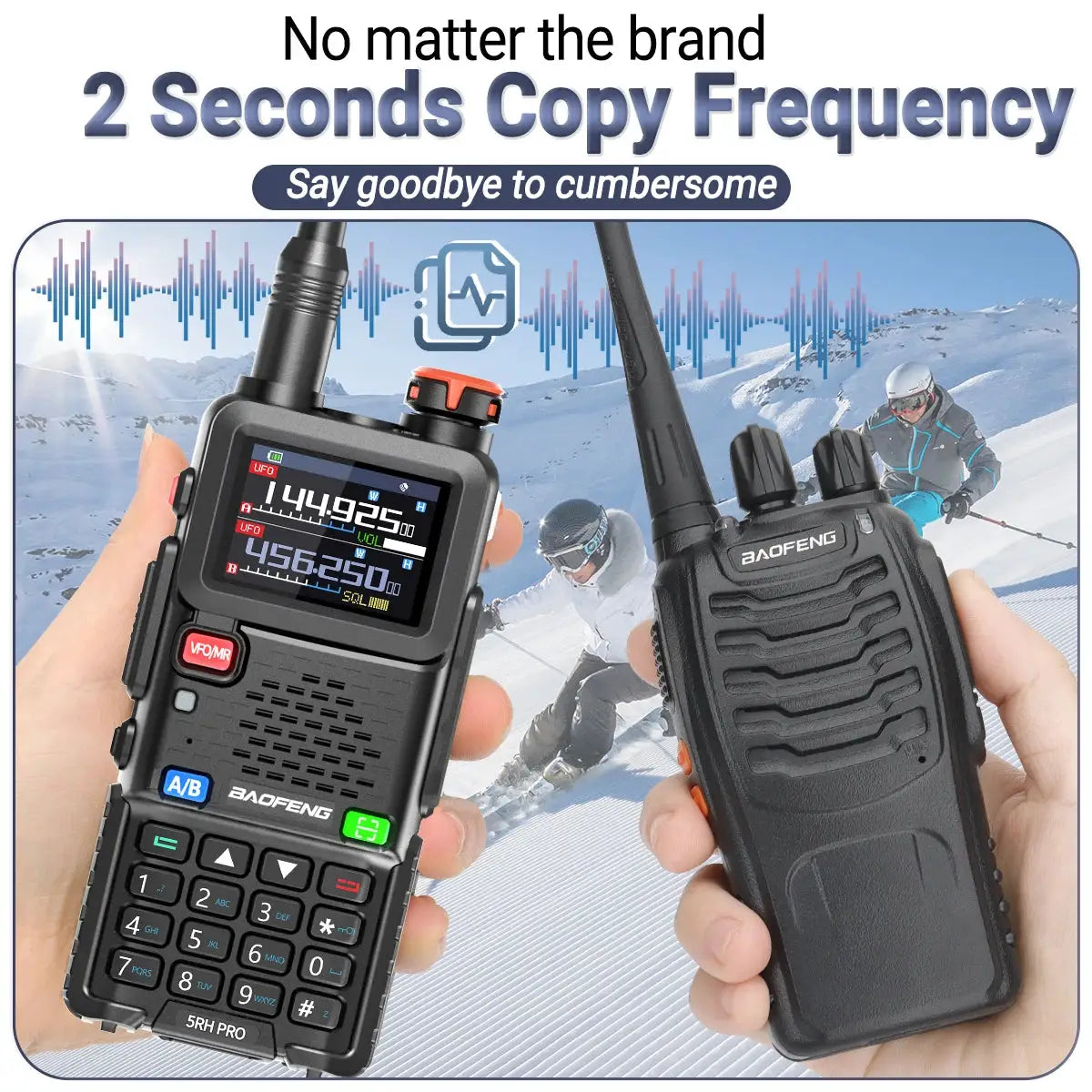

  • Wireless frequency copy: FQSCAN interface enables frequency and privacy-code scanning and memory storage for seamless peer-to-peer interoperability.
  • Power, size, and build: Li-ion battery 2500 mAh, rated voltage 7.4VDC, dimensions 58x40x130 mm (excluding antenna), weight about 300 g, with IP45 waterproof/water-resistant construction.
  • Connectivity and inputs: Type-C USB charging for modern, easy recharging in car, power bank, or laptop setups.

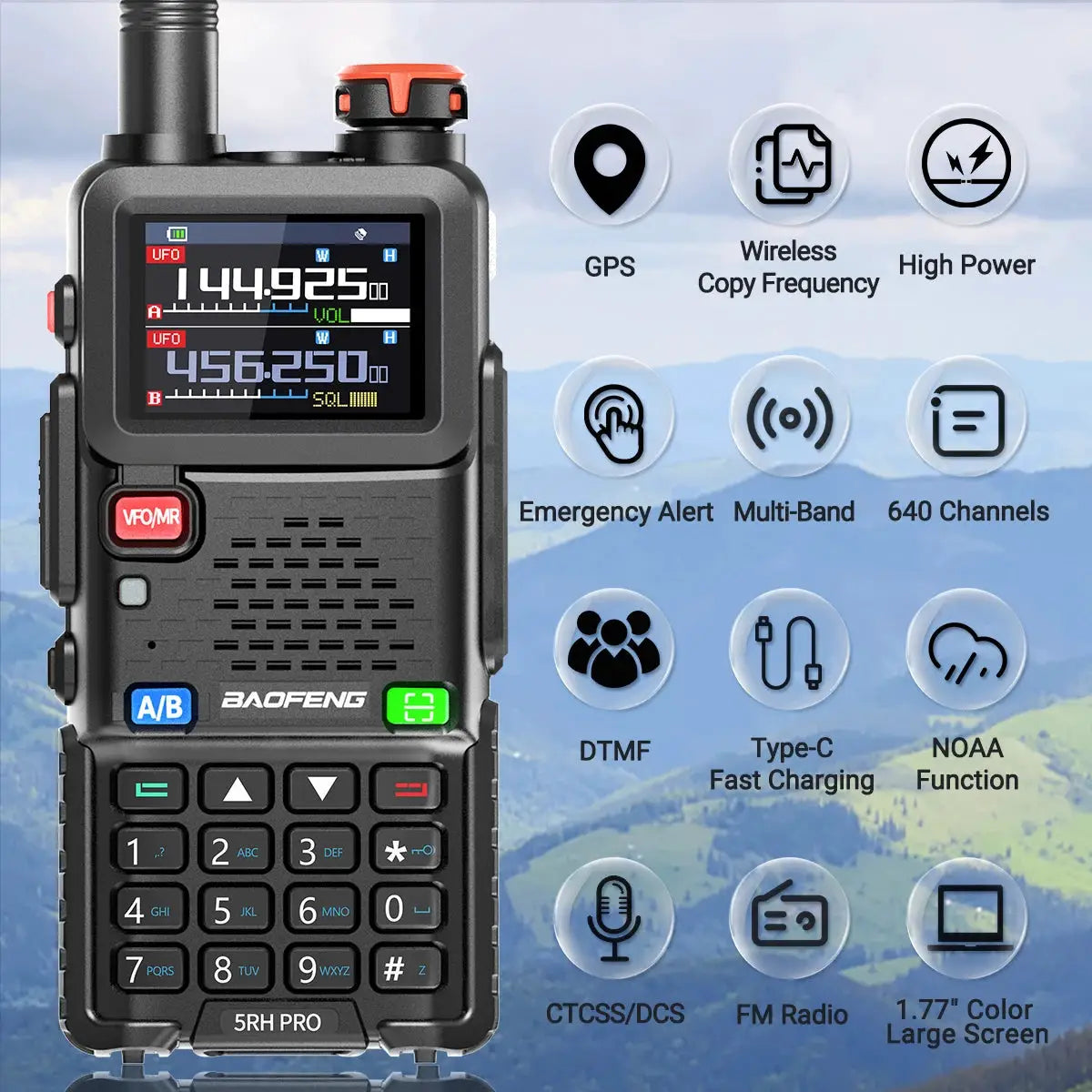

  • Advanced radio features: wide/narrow band operation, CTCSS/DCS, emergency alarm, and a suite of scanning and monitoring tools to support complex communication scenarios.

With GPS-enabled group coordination, robust channel capacity, and USB-C charging, the UV-5RH Pro GPS is a versatile choice for reliable, location-aware communications in demanding environments.


All of our items are Brand New

Model

Baofeng UV-5RH PRO GPS

Dual Band or Multi-Band

Multi-Band

640 channelsstorage

Short cut menu operation mode

VFO&Memory channels scan

Emergency Alarm

Time-out Timer(TOT)

0~9gradesVOXselectable

PTT&ANIID

FM radio and 25 stations storage

Voice companding

50CTCSS/104DCS

High/Low TX power selectable

Busy channel lock-out(BCLO)

DTMF function

OFF SET function

Wide/Narrow Band(25kHz/12.5kHz)

Yes


VOX function

Yes


Busy lockout function

Yes


Scanning function

Yes


Monitor function

Yes


Time-out Timer(TOT) function

Yes


LCD display

Yes


Dual display

Yes


Battery voltage display function

Yes


Channel name display and editing functions

Yes


Signal strength indicator

Yes


Keypad lock function

Yes


Built-in Ledtorch

Yes


FM radio

Yes


Wireclone function

Yes


Emergency alarm function

Yes


Low battery alarm

Yes


Powersavingfunction

Yes


High/MID/Low TX power selectable

Yes


ROGERSET

YesYes


Chinese and English voice prompt

Yes


PC software programmable

Yes


Rated Voltage

7.4VDC±10%

Output power

<=5W

Battery type

Li-ion battery

Battery capacity

2500mAh

Working temperature

-20~+50°C

Antenna Impedance

50ohm

Weight(Including Antenna)

300g

Dimension(LXWXH)

58X40X130mm(NotAntenna)

Frequency stability

±2.5ppm

Carierwave tolerance

5ppm

Modulation

16K Ø F3E/11K Ø F3E

Max frequency deviation

<5kHz(Wide)
<2.5kHz(Narrow)

Modulation character

6dBperfoldfrequencypatch

Emission current

<1.6A(5W)

CTCSS/DCS

0.5±0.1kHz(Wide)
0.3±0.1kHz(Narrow)

Sensitivity

<0.16µV(12dBSINAD)

Silent sensitivity

<0.2µV

Intermediation Distortion

<10%

Intermodulation

8-12mv

Adjacent channelselectivity(wide/narrow)

<-65dB(Wide)<-60dB(Narrow)
