Uking Mini 30W Spot Beam Moving Head Light RGBw Effect Stage

Uking Mini 30W Spot Beam Moving Head Light

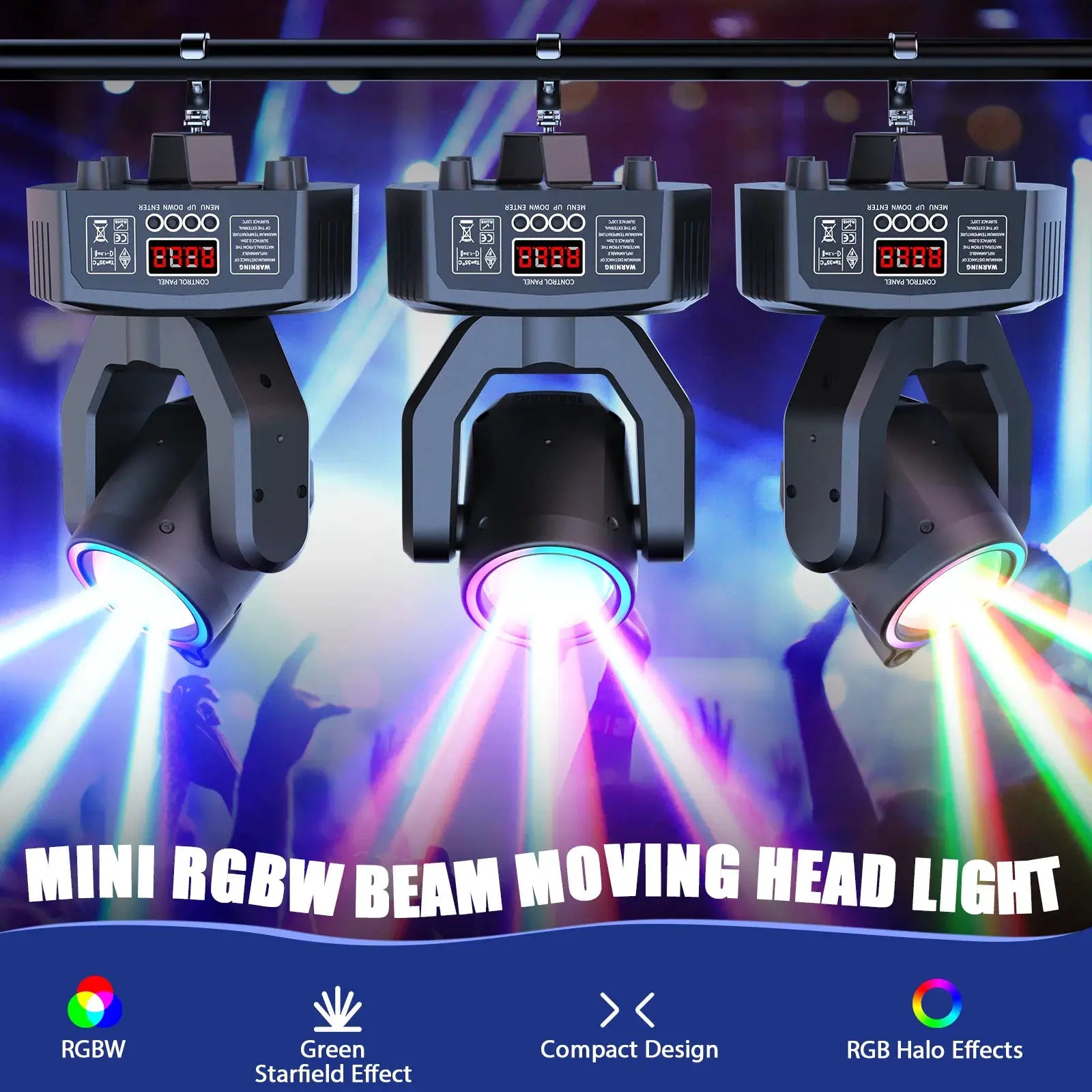

Transform any venue with the dynamic capabilities of the Uking Mini 30W RGBW Moving Head Light. Designed for DJs, event producers, and home theater enthusiasts, this compact unit packs professional-grade beam projection and color mixing into a portable, durable chassis. Whether installed on a stand or suspended from a ceiling truss, it delivers intense illumination suitable for intimate gatherings and commercial stage environments.

Espersive Illumination Engine

The core of this system is its powerful LED configuration: three 10W RGBW LEDs produce high-intensity beams, while twelve 0.2W RGB LEDs create a full-color halo effect. An additional 50MW green component generates distinct star patterns and atmospheric textures. With an optical output optimized for projection distances between 3 to 5 meters, the light utilizes an acrylic lens to ensure stable, energy-efficient color expression across varied surfaces.

Versatile Control Systems

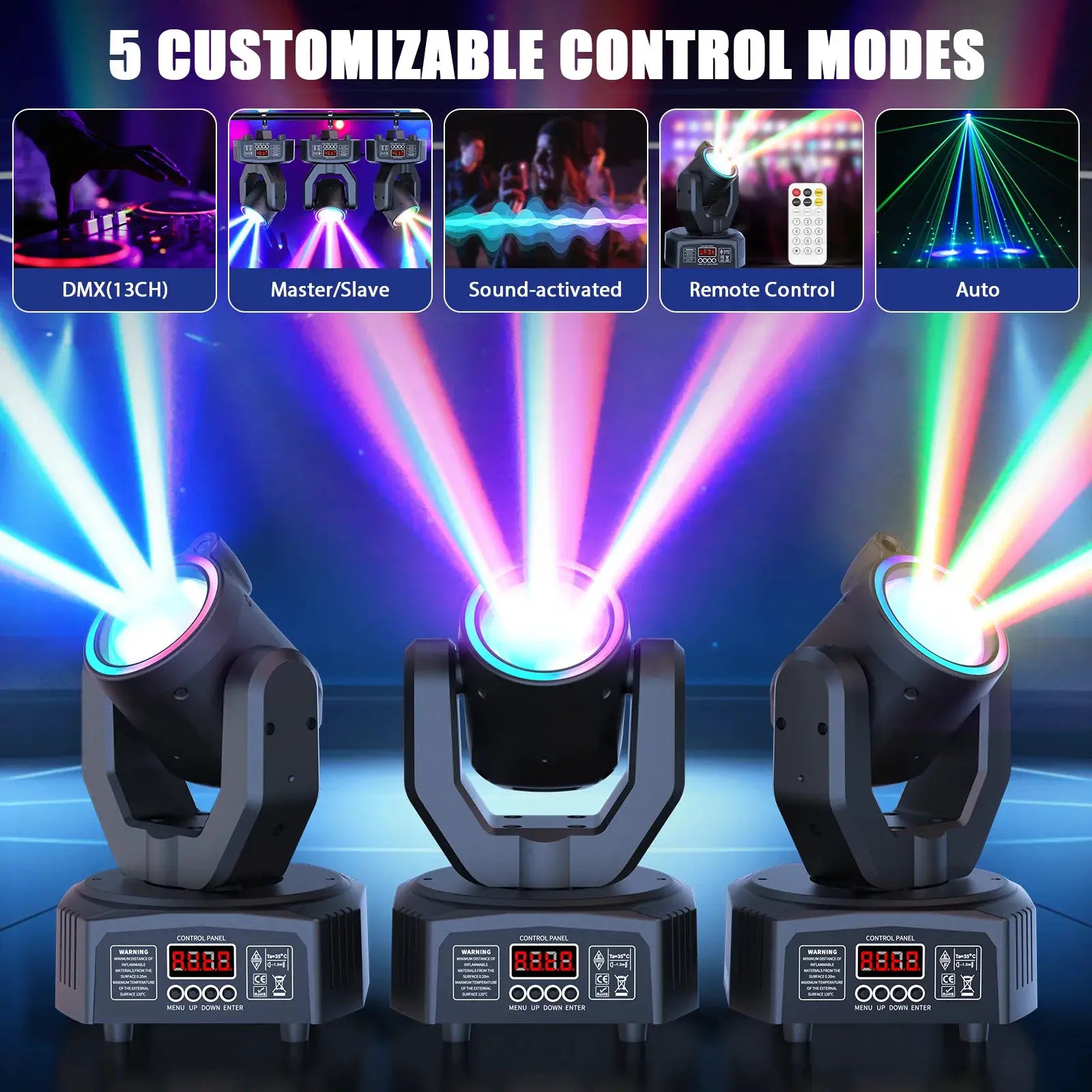

Operation matches the complexity of your event needs. Through the standard DMX512 protocol, users gain 13-channel precision control over pan, tilt, zoom, strobe (1-20Hz), and color gels. For simpler setups, the included 433MHz remote offers wireless control up to 8 meters away. Additional modes include master-slave synchronization, sound reactivity (voice activation/step), and an auto-run function with built-in program cycles.

Mechanical Precision & Safety

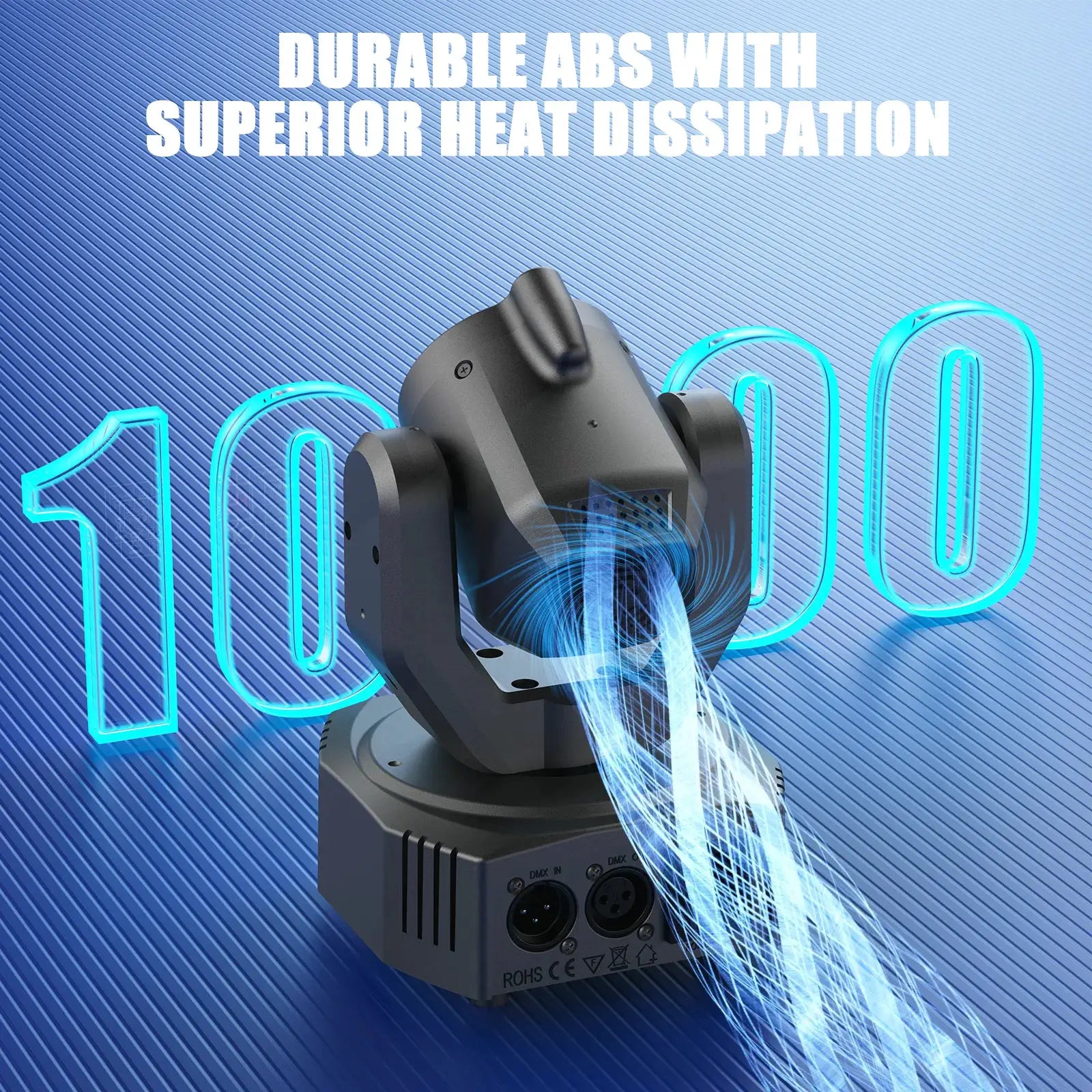

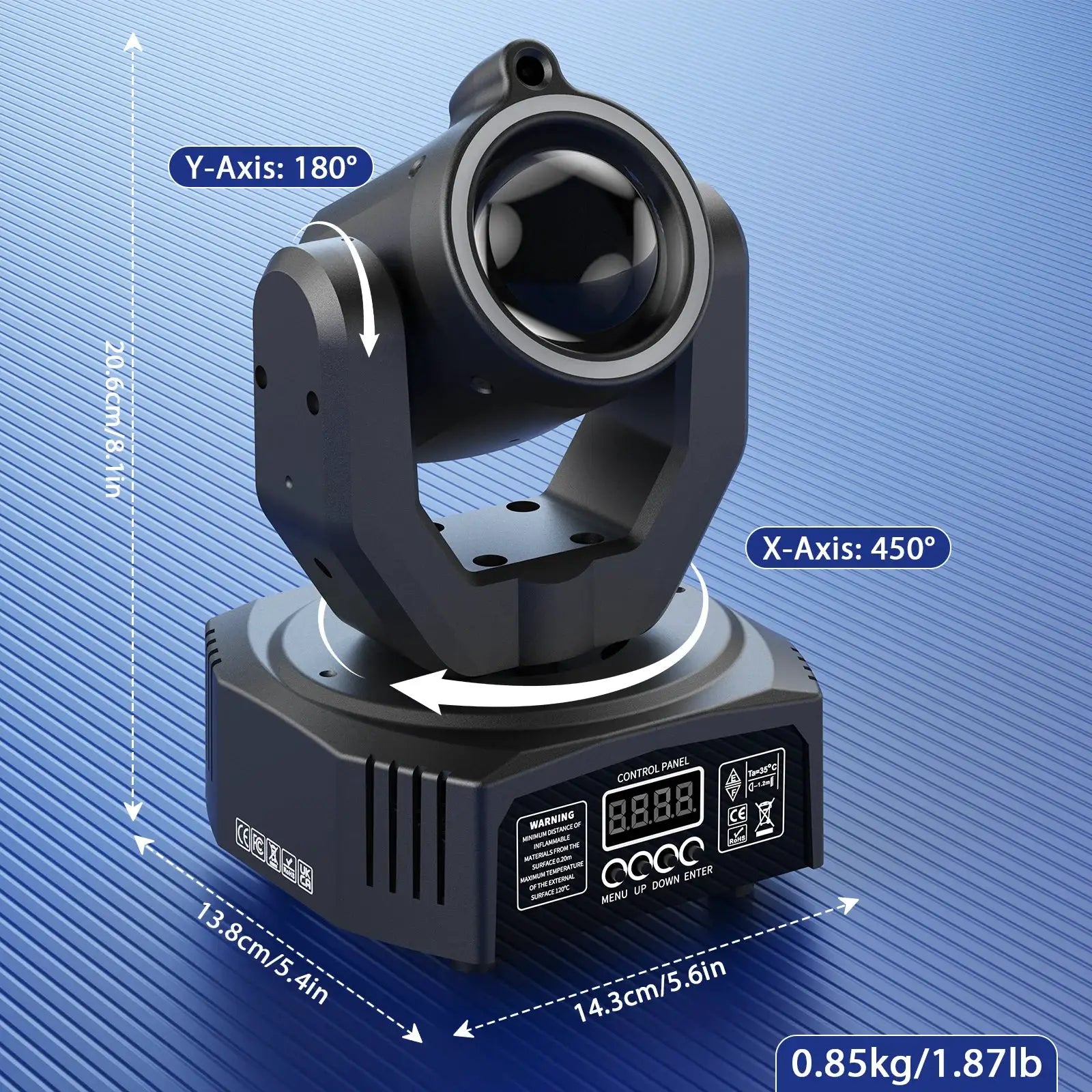

The moveable head features a wide articulation range, boasting 450 degrees rotation on the X-axis and 180 degrees on the Y-axis. Constructed from impact-resistant ABS material, the unit maintains structural integrity during transport. The base displays real-time data via a 4-digit digital screen, allowing immediate verification of channel status. For safety compliance, the external operating surface reaches up to 120°C, requiring a minimum 0.2m clearance from flammable materials during operation.

• Spectrum: 3x10W RGBW + 12x0.2W RGB + Green Star Element.
• Communication: XLR three-core input/output for daisy-chaining multiple units.
• Power Supply: Universal voltage AC100V-240V supports global deployment.

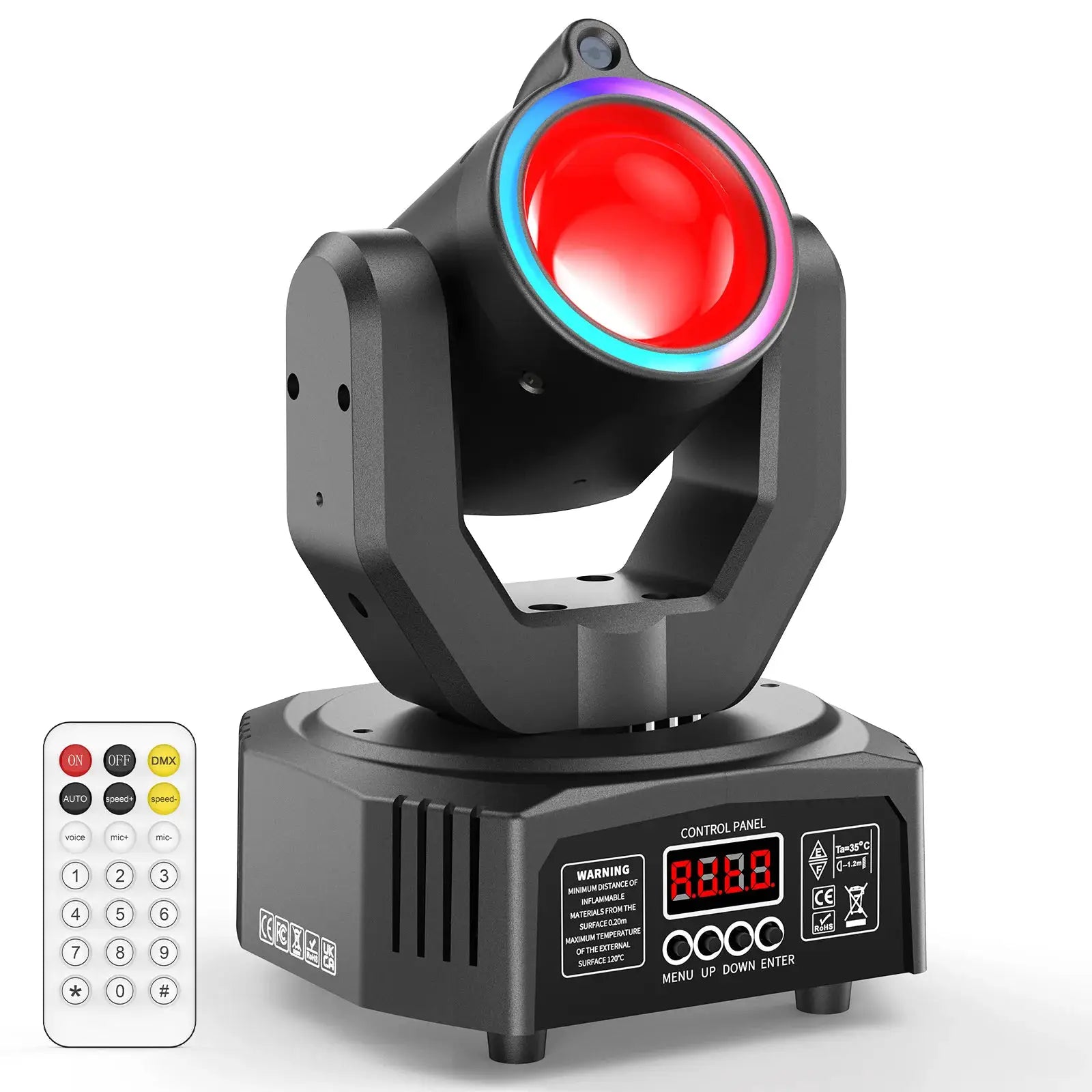

• Included Accessories: Light body, protective bracket, power cord, remote controller, and instruction manual.
